corrals
MODULAR DESIGN. EASY SETUP.

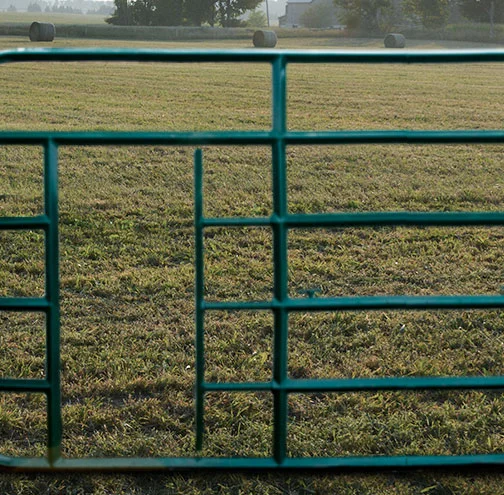

Set up the perfect pasture or practice paddock with the Diamond Bar free standing steel corral. As a completely modular design, the Diamond Bar corral is the ideal solution for building portable, adjustable, high strength corral systems for your horses. Corral panels are available in 4-foot to 20-foot lengths, giving you the flexibility to build any shape, size or design of containment area. Both the standard 6 bar – 57 inch and the heavy duty 7 bar - 66 inch Diamond Bar corral panels provide a safe and protective environment for both you and your horses.
strength is an ethic
Just like you, we expect things to work right and last a long time. It's with this high expectation of quality that we build all our products which is why Diamond Bar is the brand trusted by farmers, ranchers, land owners and horse owners.
standard features
WELDED CHAIN LATCH
Diamond Bar’s exclusive chain latch design makes entering quick and simple yet keeps the corral firmly secure when closed.

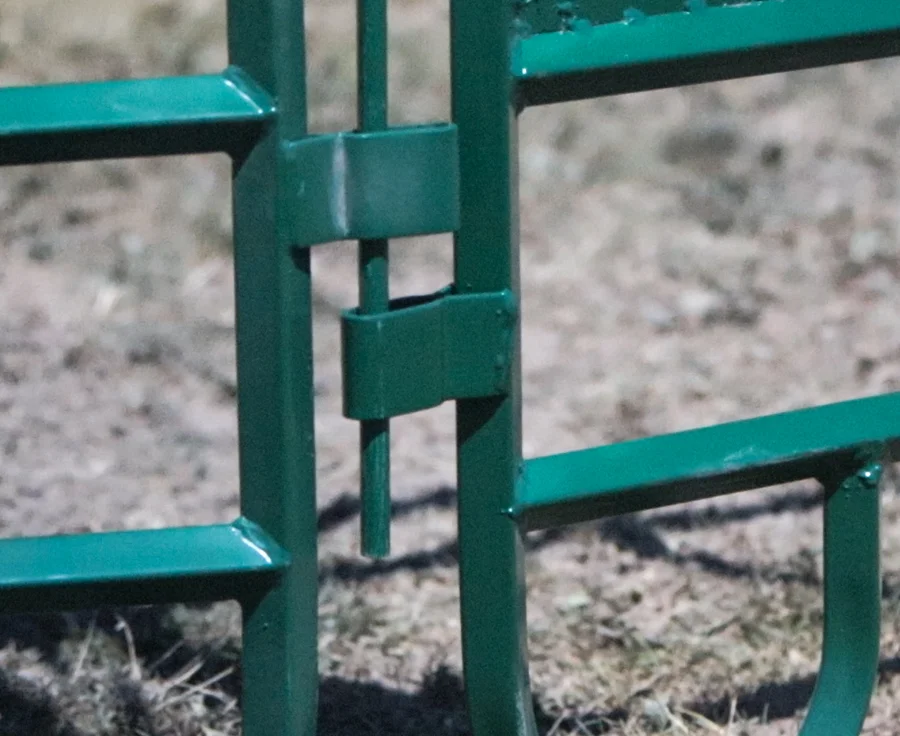

Oval hinge
The innovative oval connector hinges keep the panels secure and aligned, even when terrain is not level.
simple installation
Setting up a diamond bar corral is quick and easy. Panels are held together securely with pins, no tools required.
OPTIONAL FEATURES

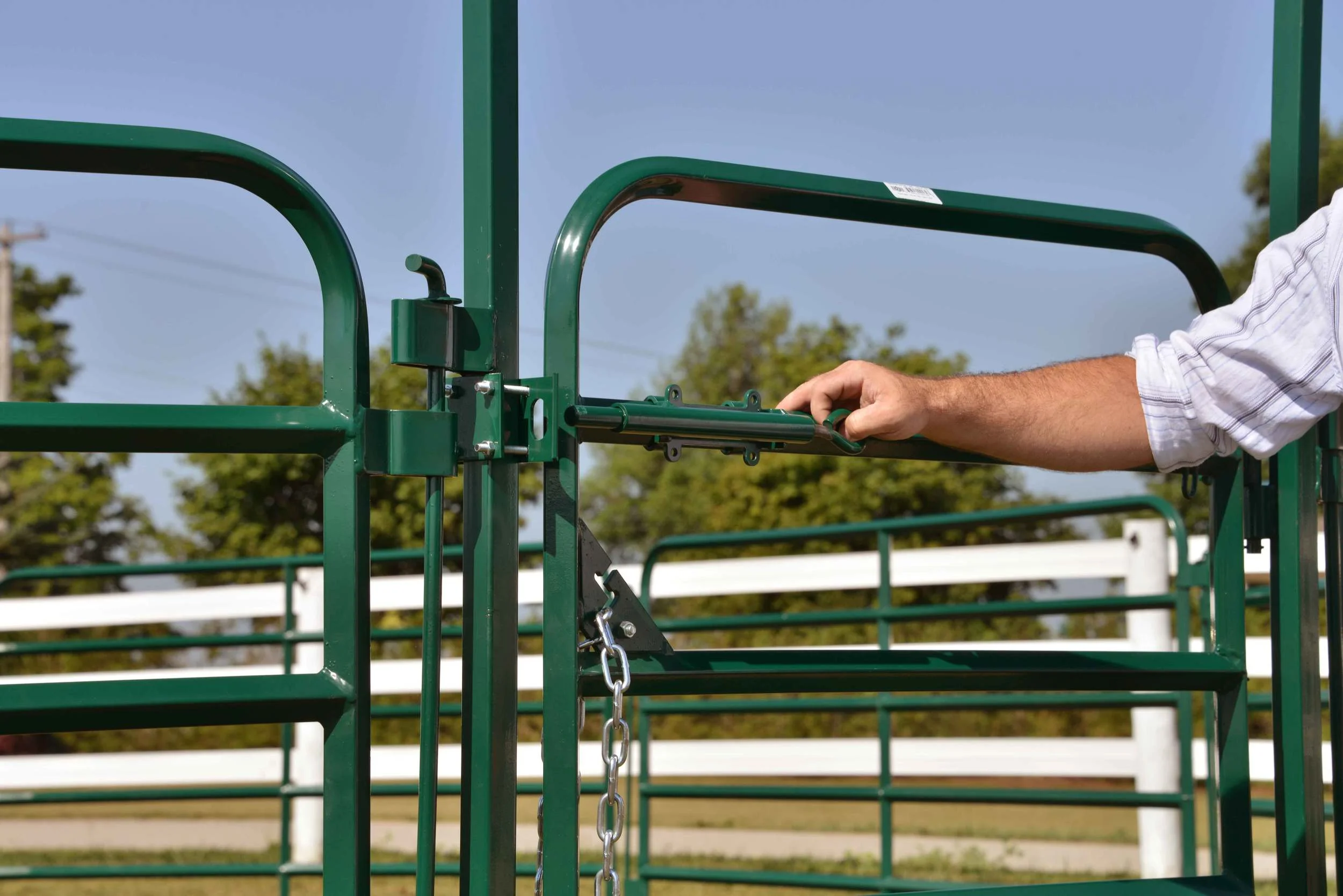

bolt-on spring latch
The uniquely designed circular latch handle allows simple one handed operation while preventing accidental opening.
Walk-through gate
Both horse and rider can easily access the corral with Diamond Bar’s corral gate designed for one-hand operation.
calf exit
A great upgrade for any corral, the calf exit allows access to calves without opening the entire gate.
model specifications
| CORRAL MODEL | WIDTH | WEIGHT | VERT SPACER |
|---|---|---|---|
| C63 | 3 feet | 45 LBS | 0 |
| C64 | 4 feet | 52 LBS | 0 |
| C65 | 5 feet | 60 LBS | 0 |
| C66 | 6 feet | 68 LBS | 0 |
| C67 | 7 feet | 76 LBS | 1 |
| C68 | 8 feet | 87 LBS | 1 |
| C69 | 9 feet | 96 LBS | 1 |
| C610 | 10 feet | 105 LBS | 1 |
| C611 | 11 feet | 114 LBS | 2 |
| C612 | 12 feet | 123 LBS | 2 |
| C613 | 13 feet | 131 LBS | 2 |
| C614 | 14 feet | 140 LBS | 3 |
| C615 | 15 feet | 151 LBS | 3 |
| C616 | 16 feet | 162 LBS | 3 |
| C617 | 17 feet | 169 LBS | 3 |
| C618 | 18 feet | 175 LBS | 3 |
| C619 | 19 feet | 186 LBS | 4 |
| C620 | 20 feet | 197 LBS | 4 |
| CORRAL MODEL | WIDTH | WEIGHT | VERT SPACER |
|---|---|---|---|
| C74 | 4 feet | 60 LBS | 0 |
| C76 | 6 feet | 78 LBS | 0 |
| C78 | 8 feet | 106 LBS | 1 |
| C710 | 10 feet | 124 LBS | 1 |
| C712 | 12 feet | 142 LBS | 2 |
| C714 | 14 feet | 160 LBS | 2 |
| C716 | 16 feet | 178 LBS | 3 |
| C718 | 18 feet | 196 LBS | 3 |
| C720 | 20 feet | 214 LBS | 4 |
* All listed sizes are available in stock. Custom sizes and styles are available upon request.
